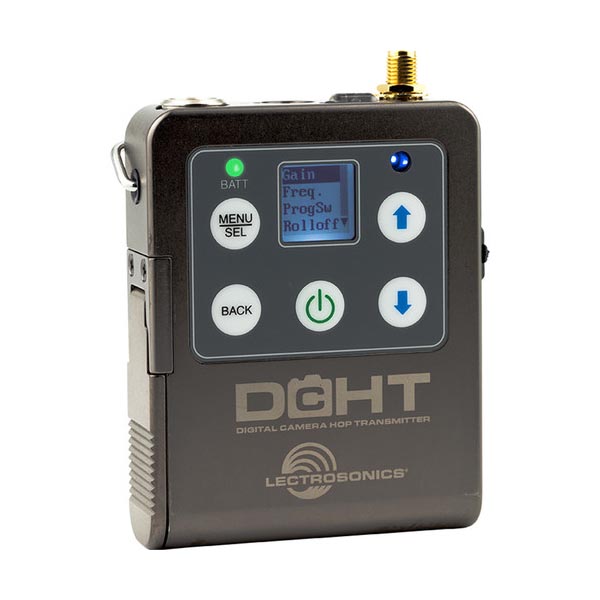

Lectrosonics DCHT Wireless Digital Camera Hop Transmitter

SKU: #DCHT
Lectrosonics

Features

  • For Broadcast, Film, and TV Production
  • 470.1 to 607.95 UHF Frequency Band
  • Secure 256-Bit Encryption
  • 10, 25, or 50mW Selectable RF Power
  • Up to 51 dB of Gain in 1 dB Steps
  • DSP-Controlled Input Limiter
  • TA6M Jack for AES3 or Analog Mic/Line In
  • Powered via AA Batteries
  • Battery Life up to 5 Hours
  • Aluminum Housing with Belt Clip

$2,256.00

Lectrosonics DCHT Overview

Designed for broadcast, film, and television production, the Lectrosonics DCHT is a wireless digital camera hop transmitter offering a reliable wireless connection between a bag- or cart-based audio system and cameras/recorders. This UHF transmitter tunes in coarse or fine increments from 470.1 to 607.95 MHz, and utilizes 256-bit encryption for secure signal transmission. With three selectable levels of RF power (10, 25, or 50mW) and a DSP-controlled input limiter, the DCHT delivers strong, clear, distortion-free audio.

Also contributing to its solid sonic performance is its preamplifier, which accommodates lavalier/dynamic mics or line-level inputs, and provides up to 51 dB of gain in 1 dB steps. The TA6M input jack accepts two channels of analog mic-/line-level signal or a stereo AES3 digital feed via an array of cable adapters (available separately).
The DCHT boasts up to five hours of battery life via two AA batteries (available separately) safely held in place by a latching aluminum battery door. External DC powering is possible through the LTBATELIM adapter (available separately). The DCHT’s rugged housing is constructed from solid machined aluminum coated in an ultra-hard electroless nickel finish. A detachable wire belt clip allows the DCHT to be easily affixed for versatile positioning.

  • Tunes in coarse or fine steps across entire UHF frequency range from 470.1 to 607.95 MHz
  • 256-bit encryption (AES 256-CTR) for applications with high-level security
  • Selectable RF power at 10, 25, or 50mW
  • TA6M jack accepts two mic- or line-level analog signals, or a 2-channel AES3 digital feed via a variety of adapter cables (available separately)
  • Analog inputs can be linked for identical gain when used with a stereo source, or operate independently with individual settings
  • Input gain is adjustable over a 51 dB range in 1 dB steps to allow an exact match to the input signal level, maximizing the dynamic range and signal-to-noise ratio
  • Accommodates lavalier microphones, dynamic microphones, or line-level signals
  • Side-panel USB port for easy firmware updates
  • Compatible with Duet M2R receiver
  • Third-generation digital architecture with high-efficiency digital circuitry yields extended operating time on two AA batteries (available separately)
  • May be powered via an external DC power supply using the Lectrosonics LTBATELIM adapter (available separately), which replaces the battery door and provides a locking coaxial connector
  • Programmable switch can be configured as a mute switch, a power on/off switch, or be bypassed
  • Red/green LEDs provide audio level indications from -20 dB to the onset of limiting for each channel
  • Solid machined aluminum housing finished with a dark, ultra-hard, electroless nickel finish
  • Secure stainless spring-wire belt clip is easily removed and attached without tools (alternative spring-loaded belt clip available separately)
  • Machined aluminum battery door is hinged to the housing, and latches securely to prevent accidental opening even if the DCHT is dropped
  • Set up and adjustments are easily accessible through a backlit LCD, membrane switches, and an intuitive menu structure
SKU: DCHT Category:
Weight 408 g
Dimensions 254 × 251 × 76 mm
Brand

Operating Frequencies UHF: 470.1 to 607.95 MHz
Frequency Selection Steps 25 kHz
RF Power Output 10, 25, or 50 mW (Selectable)
Compatibility Modes DCH (Digital Camera Hop) and Duet (IEM)
Encryption AES 256-CTR
Frequency Stability ± 0.002%
Spurious Radiation Compliant with ETSI EN 300 422-1 V1.4.2
Emission Designator 200KG1E
Modulation 8PSK
Equivalent Input Noise -128 dBV
Input Level Mic (Nominal): 2 to 300 mV Before Limiting
Mic (Maximum): 1 V with Limiting
Line: +24 dBu Before Limiting
Input Impedance Mic: 300 Ohms or 4.5 kOhms (Selectable)
Line: > 100 kOhms
Input Limiter Type: Dual Envelope
Range: 30 dB
Gain Control Range 51 dB in 1 dB Steps (Digital Control)
Modulation Indicators Bicolor LED and LCD Bar Graph
Frequency Response 15 Hz to 11.3 kHz (+0 dB, -3 dB)
Audio Input 1 x Switchcraft Locking TA6F (Accepts Analog or AES3 Digital)
USB Port 1 x Micro-USB for Firmware Updates
Antenna Input 1 x SMA
Antenna Type Galvanized Steel, Flexible Wire
Battery Life Up to 5 Hours with Duracell Quantum Alkaline Batteries
Power Requirements 2 x AA Batteries (Duracell Quantum Recommended)
Housing Material Solid Machined Aluminum
Dimensions (H x W x D) 3.5 x 2.4 x 0.7″ / 8.8 x 6.2 x 1.9 cm
Weight With Spring-Loaded Belt Clip and Lithium AA Batteries: 5.8 oz / 163 g
With Spring-Loaded Belt Clip and Duracell Quantum AA Batteries: 6.4 oz / 181 g
With Wire Belt Clip and AA Batteries: 6.5 oz / 184.3 g
