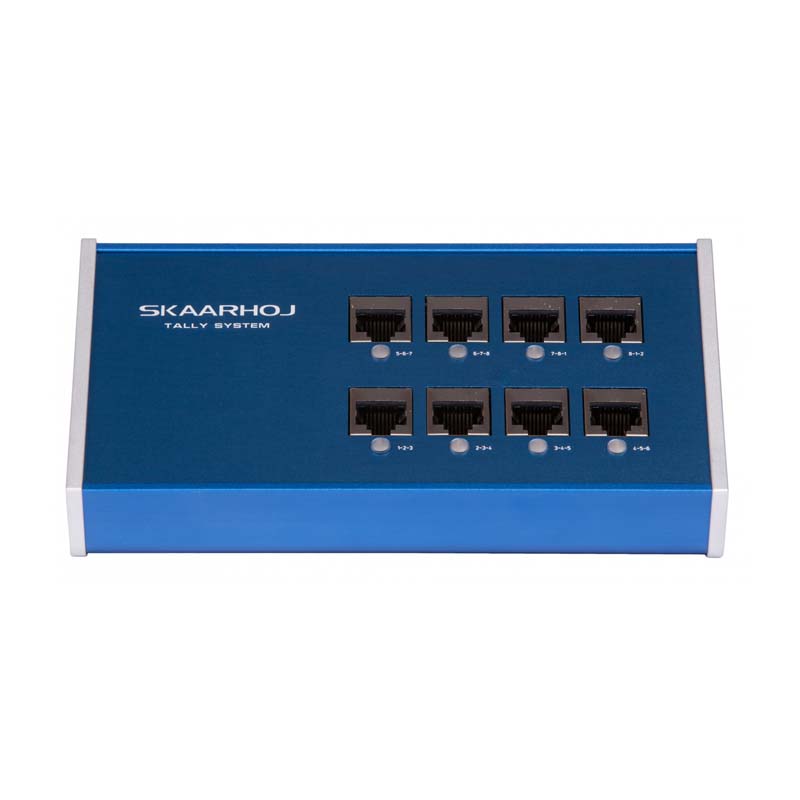

Take full control of your live video production with the 8-Channel Tally Box from SKAARHOJ. The system supports up to eight tally lights and offers both program and preview tally. The lights can be connected one by one or in a daisy chain configuration with a maximum of three in a row. The Tally Box is compatible with Blackmagic Design ATEM, vMix, and TriCaster switchers.
|Dimensions||298 × 250 × 200 mm|
SKAARHOJ Tally Light0 out of 5(0)
• For Use with Tally Box System
• 1 x Large Red Main LED
• 1 x Red/Green Operator LED
• 2 x RJ45 Ports
• On/Off Switch for Main LED
• Dimmed On/Off Switch for Operator LED
• Hot Shoe MountSKU: Tally-Light-Solo-V2
SKAARHOJ GPI Triggers to SDI Tally0 out of 5(0)
From the factory the box is configured to control camera IDs 1-8. When input 1-8 is closed to GND, the red tally flag for camera 1-8 respectively will be set on the SDI output from the box. Likewise input 9-16 (on the same DB25 connector) will result in green tally (preview) being set on the SDI output.
If you want tally control of camera IDs other than 1-8 or if you want just red tally for camera 1-16 for instance, you simply configure the inputs in the web interface.
The SDI input should be connected to your source for the camera return feed. This would typically be a program output and possibly enriched with CCU data via either an ATEM switcher, the SKAARHOJ RCP, or the Blackmagic Arduino Shield. The SDI Tally box passes through all CCU information and only overrides Tally information.
The Blackmagic 3G-SDI Arduino Shield supports the following formats: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94 and 1080p60, but the camera doesn´t have to be running the same video format as the program input, so you can use cameras in Ultra HD while the camera protocol is sent over HD signal to the camera.SKU: SDI-GPI-Link-V1
SKAARHOJ ETH-SDI Link0 out of 5(0)
Receives “UDP Camera Control” information over Ethernet and forwards it on the SDI out connector.
Used to merge network data from multiple RCPs onto a single SDI wire.SKU: ETH-SDI-Link-V1
